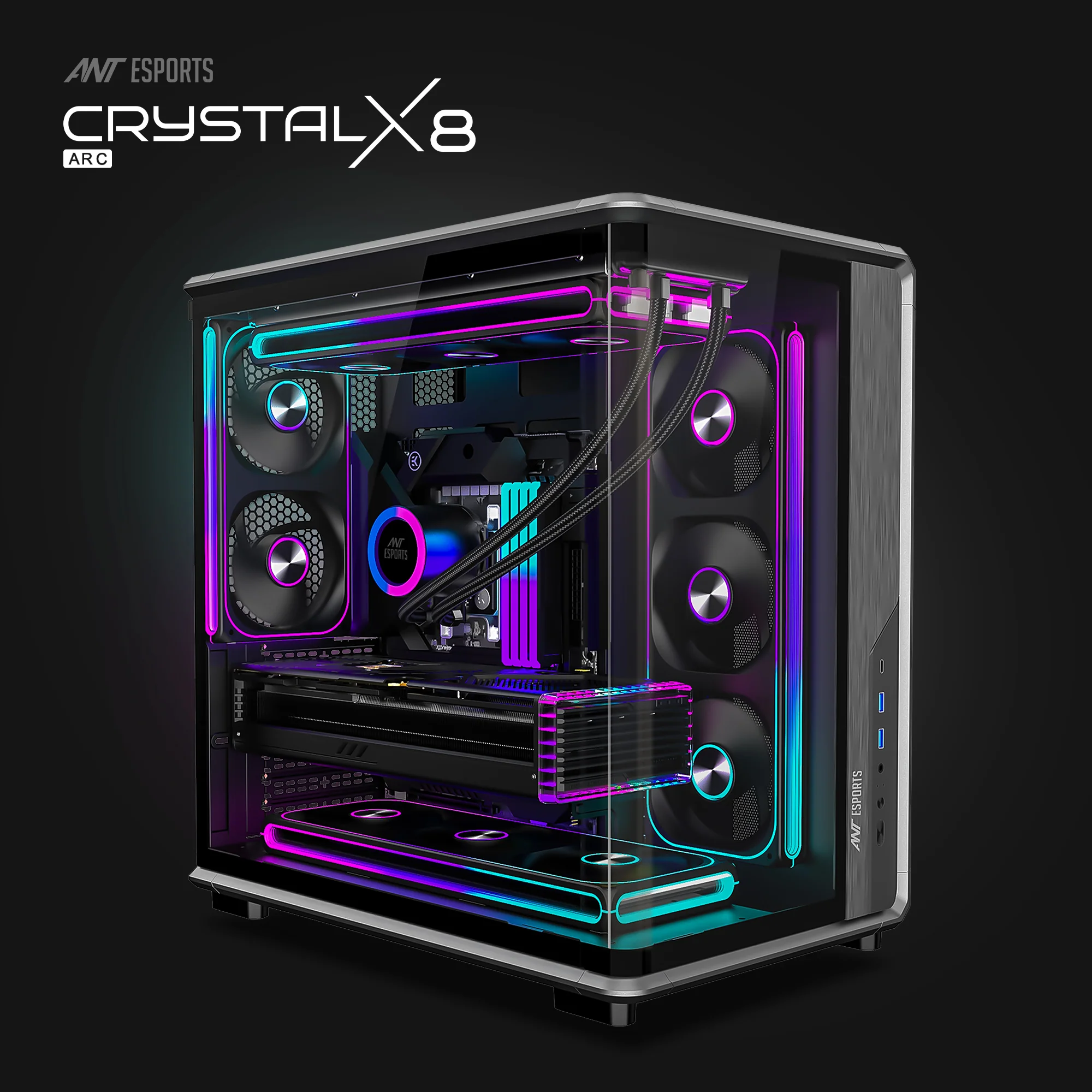

Ant Esports Crystal X8 ARC Exoskeleton Gaming Cabinet/Case
Overview
The ANT Esports Crystal X8 ARC is a premium panoramic gaming cabinet designed to showcase your high-performance PC build from every angle. Featuring a stunning 270° dual-sided tempered glass design, pre-installed ARGB mono-frame fans, and extensive cooling support, the Crystal X8 ARC delivers exceptional airflow and aesthetics for gamers, streamers, and PC enthusiasts.
Its modern curved-edge design, wide hardware compatibility, and swappable I/O panel make it an ideal choice for building a powerful and visually impressive gaming system.
Key Features
270° Ultra-Wide Panoramic View
Dual-sided tempered glass panels provide a seamless 270° viewing experience, allowing your RGB components and custom build to be displayed beautifully.
Premium Mono Fan Frame Design
Features pre-installed mono-frame ARGB fans that create a cleaner look while improving airflow and cable management.
8 Pre-Installed ARGB Fans
Comes equipped with eight ARGB cooling fans for optimized airflow and vibrant lighting effects right out of the box.
Front-to-Top Swappable I/O Panel
Flexible I/O panel placement allows users to configure accessibility based on desk setup and personal preference.
Advanced Cooling Support
Supports multiple fan and radiator configurations, including dual 360mm liquid cooling radiators.
High-End Component Compatibility
Supports large graphics cards and tall CPU coolers, making it suitable for flagship gaming hardware.
Universal RGB Ecosystem Support
Compatible with:
- ASUS Aura Sync
- MSI Mystic Light
- Gigabyte RGB Fusion
- ASRock Polychrome Sync
Specifications
Dimensions
| Specification | Details |
|---|---|
| Product Size | 423 x 278 x 430 mm |
| Package Size | 510 x 355 x 510 mm |
Motherboard Support
- ATX
- Micro-ATX
- Mini-ITX
Construction Material
- SPCC Steel
- Tempered Glass
Storage Support
| Drive Type | Capacity |
|---|---|
| 3.5" HDD | 1 |
| 2.5" SSD | 3 |
| 5.25" Drive Bay | Not Supported |
Fan Support
| Location | Capacity |
|---|---|
| Top | 3 x 120mm |
| Bottom | 3 x 120mm |
| Side | 3 x 120mm |
| Rear | 2 x 120mm |
Maximum Fan Support: Up to 11 x 120mm Fans
Liquid Cooling Support
| Location | Radiator Size |
|---|---|
| Top | Up to 360mm |
| Side | Up to 360mm |
| Rear | Up to 120mm |
Pre-Installed Fans
- Bottom: 3 x 120mm Reverse-Blade ARGB Mono Frame Fans (360mm)
- Side: 3 x 120mm Reverse-Blade ARGB Mono Frame Fans (360mm)
- Rear: 2 x 120mm ARGB Mono Frame Fans (240mm)
Total Pre-Installed Fans: 8 ARGB Fans
Maximum Hardware Clearance
| Component | Clearance |
|---|---|
| Graphics Card Length | 420 mm |
| CPU Cooler Height | 165 mm |
Front I/O Panel
- 1 x USB Type-C 3.1
- 2 x USB 3.0
- HD Audio + Microphone Combo Port (TRRS)
- 2 x LED Indicators
- Power Button
- Reset Button
Expansion Slots
- 7 Expansion Slots
Why Choose the Crystal X8 ARC?
✔ 270° Dual Tempered Glass Panoramic Design
✔ 8 Pre-Installed ARGB Fans Included
✔ Reverse-Blade Side & Bottom Fans for Clean RGB Display
✔ Dual 360mm Radiator Support
✔ Compatible with ATX, Micro-ATX & Mini-ITX Motherboards
✔ Supports GPUs up to 420mm Length
✔ Front-to-Top Swappable I/O Panel
✔ RGB Motherboard Synchronization Support
✔ Premium Showcase Gaming Cabinet
Package Contents
- ANT Esports Crystal X8 ARC Cabinet
- 8 Pre-Installed ARGB Fans
- Installation Accessories Kit
- User Manual
